600*2500mm Galvanized Steel Rib Lath Mesh Sheet For Concrete Formwork
Rib Lath Information

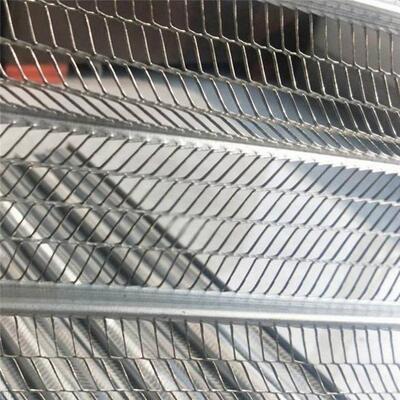

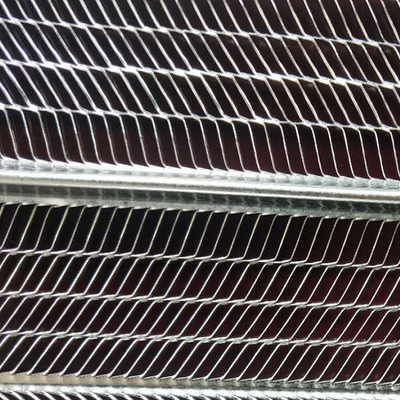

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability,thereby delivering greater plaster bonding and fixing properties. It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.
The Galvanized Steel Rib Lath Mesh Sheet for Concrete Formwork is a high-strength construction reinforcement material designed to improve bonding performance between concrete and plaster or structural coatings. It is widely used in modern building systems as a permanent formwork support, especially in walls, columns, beams, and ceiling applications where strong adhesion and structural stability are required.
This product is manufactured from high-quality galvanized steel sheets through a precision process of expansion, rib forming, and perforation. The unique ribbed profile combined with diamond-shaped mesh openings creates a rigid yet flexible structure that enhances mechanical interlocking with concrete. When concrete is poured or plaster is applied, the material allows the mixture to pass through the mesh openings and lock firmly into the sheet, forming a strong composite surface.
The hot-dip galvanizing process provides excellent corrosion resistance, ensuring long-term durability even in harsh environments such as humid construction sites, coastal areas, and industrial zones. The zinc coating protects the steel base from rust and oxidation, significantly extending the service life of the material.
Rib Lath Parameter
| Name |
Corrosion resistant Rib Lath Expanded Metal Galvanized Sheet Mesh |
| Dimension |
0.6*2m,0.6*2.5m |
| Rib distence |
100mm/150mm |
| Thickness |
0.3mm/0.35mm/0.4mm |
| Feature |
easy to cut/Long life |
Rib Lath Advantage
High Bond Strength:
The deep ribs allow the concrete or plaster to adhere more effectively, increasing the overall structural integrity.
Flexibility:
Rib Mesh can be easily shaped and adapted to complex forms, making it ideal for irregular or curved surfaces. Lightweight: Despite its strength,
Rib Mesh is relatively lightweight, reducing the load on structural elements and simplifying handling on-site. Efficient Installation:
The design reduces the need for extensive support structures during installation, cutting down on labor and material costs.
Rib Lath Application
This product is widely used in modern construction projects requiring strong and durable concrete structures.
It is commonly applied in concrete wall systems, retaining walls, basement structures, tunnel linings, and bridge construction. In high-rise buildings, it is used in shear walls and core walls to enhance structural stability and load resistance.
It is also suitable for renovation and repair works, where it improves the bonding between old and new concrete layers, strengthening existing structures.
In underground and marine environments, its corrosion-resistant properties make it an ideal choice for long-term structural safety.
Service
1.Fast feedback and complete solution
2.Competive price and better delivery time
3.Free samples made in 2 days
4.Complete order system
5.Excellent after sale service
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:Carbon steel,stainless steel,aluminum,aluminum alloy ,copper,galvanized plate.Special material is also available.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
